Wafer GSM Intercom
Talk to visitors and give them access on your mobile phone via a GSM Intercom..
GSM Intercom      GSM-Auto Controller & GSM-weekly controller
Print this pageAdd to Favorite

GSM-AUTO and GSM-WEEKLY

GSM-AUTO for daily preset timer,automatically running on any timer in a day

GSM-WEEKLY for weekly preset timer,automatically running on any time in a week time

Order the samples directly from http://www.wafer-shopping.com :

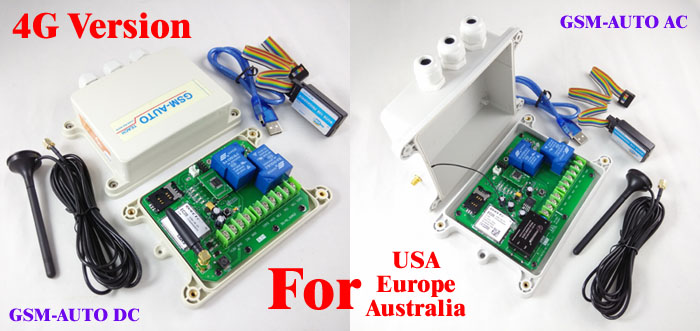

GSM-Auto Controller (For daily auto working timer)

GSM-AUTO products are supplied by WAFER GROUP

Remote control using a cell phone from anywhere in the world!

The GSM-AUTO is a GSM remote control switch, it connects to the cell phone network and like a cell phone has its own cell phone number. The GSM-AUTO is activated by calling its cell phone number, it will recognise an authorised telephone number calling it, reject the call without answering and switch on or off the device connected to it, because it rejects the call without answering there are no call costs incurred.

It has 2 independent relay switches with normally open and normally closed switch contacts, these can be programmed to switch on for a pre-determined working length in a day of whenever the GSM-AUTO is called. For example,you can preset the NO.1 relay working on every day from 7:00 to 7:30, and also you can preset the NO.2 realy working on every day from 8:00 to 9:00. Totally you can preset 8 timer section for working automatically in a weekly day.You also can preset the timer would work only one time or work every day.

The relay switches can also be temporarily or permanently switched on or off by sending the GSM-AUTO a sms text message command. It can report the relay status by sending back a text message.




Why not visit out website for a full range of products with GSM Remote controller: http://www.waferstar.com

  • GSM-AUTO Teach Version
  • Each channel at 4000W @ 220V
    Additional "Teach Button" can do the fast phone number program
    More safety protection components
    On board Supercapacitors to keep the realtime clock even when power off
  • GSM-AUTO Safe Version
  • Each channel at 4000W @ 220V
    Additional "Teach Button" can do the fast phone number program
    More safety protection components
    On board Supercapacitors to keep the realtime clock even when power off
    Each output channel protected with the On board fuse
  • GSM-AUTO AC100V-240V Power supply Version
  • Each channel at 4000W @ 220V
    Power input: AC100V-240V

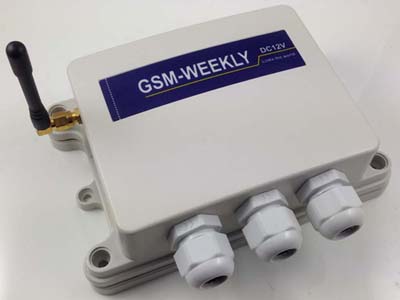

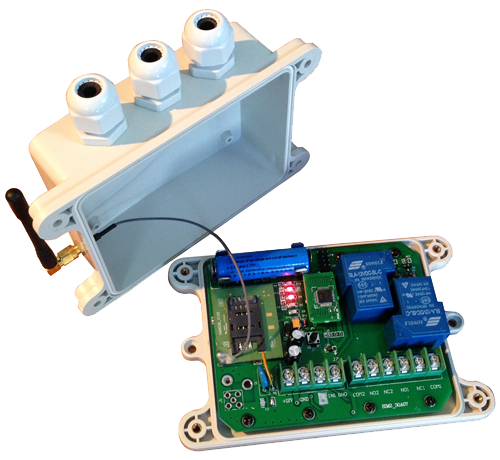

  • GSM-WEEKLY Controller (For weekly auto working timer)

    GSM-WEEKLY products are supplied by WAFER GROUP

  • Remote control using a cell phone from anywhere in the world!

    The GSM-WEEKLY is a GSM remote control switch, it connects to the cell phone network and like a cell phone has its own cell phone number. The GSM-WEEKLY is activated by calling its cell phone number, it will recognise an authorised telephone number calling it, reject the call without answering and switch on or off the device connected to it, because it rejects the call without answering there are no call costs incurred.

  • Each channel at 4000W @ 220V
    Power input: DC12V
    Maximum timer section: 16
    Rechargeable Battery on board for power off alar
    One alarm input port
    Additional "Teach Button" can do the fast phone number program

    It has 2 independent relay switches with normally open and normally closed switch contacts, these can be programmed to switch on for a pre-determined working length in any day of a week whenever the GSM-WEEKLY is called. For example,you can preset the NO.1 relay working on Monday to friday from 7:00 to 7:30, and also you can preset the NO.2 realy working on saturday and sunday from 8:00 to 9:00. Totally you can preset 16 timer section for working automatically in a weekly day.

    The relay switches can also be temporarily or permanently switched on or off by sending the GSM-WEEKLY a sms text message command. It can report the relay status by sending back a text message.

  • Backup Battery on board for power off alarm.
